Are you frustrated with the system hang and slow processing when you are working on your radiology software? It’s got to be one of the most annoying things, right? You’re in the middle of reviewing a complex scan, trying to get a report done, and your computer just sputters and freezes.
That loading wheel just spins and spins, killing your workflow. It can make you feel like your tech is holding you back. But before you get convinced that you need to spend a ton of money on a whole new set of PCs for the clinic, there might be a few simple tricks you can use to get that old machine running a whole lot smoother.
Here is one crucial thing that can instantly make your system blaze fast, and it might surprise you: it’s your hard disk. In the world of high-resolution digital imaging, especially with 3D CBCT scans, the speed at which your computer can read and write data is everything.
This is why you need to check immediately if your current hard drive is an SSD (Solid State Drive) or an older HDD (Hard Disk Drive). If your system is still running on a traditional HDD, that spinning mechanical disk is the single greatest reason why your software hangs, your loading screens drag on forever, and your productivity slows to a crawl. Upgrading this one component is the closest thing to a magic bullet for speeding up an older PC.
Hard disk drive
The Hard Disk Drive, or HDD, is the veteran of computer storage technology, having been a mainstay in nearly every desktop and laptop for decades. An HDD is a mechanical device that relies on rapidly spinning metallic platters and a moving read/write arm to access data—a process similar to an old record player.
This mechanical nature is its main drawback, especially in modern clinical environments. When dealing with the massive data files generated by imaging modalities, such as CT or MRI scans, the HDD’s sequential read/write speeds, which typically max out between $80 to $160$ megabytes per second (mb/s), become a severe bottleneck.
The constant physical seeking of data causes major slowdowns, frustrating delays, and the dreaded system hang you experience when your radiology software attempts to load, manipulate, or save large studies.
Also read:
Solid state drives (SSD)
Solid State Drives, or SSDs, are radically reshaping the way the imaging industry handles massive data by completely eliminating mechanical moving parts. Unlike traditional hard disk drives (HDDs) which rely on spinning platters and read/write arms, SSDs use flash memory chips, similar to what you find in a USB drive but much faster and more durable.
This fundamental shift from mechanical to electronic storage translates directly into revolutionary improvements in speed and efficiency. For professionals working with high-resolution imaging—from 8K video production to complex medical scans like MRI and CT—SSDs, especially those using the NVMe interface, allow for sequential read and write speeds that are often ten times faster than older technology.
This blazing performance means that tasks like loading giant raw image files, rendering visual effects, or processing multi gigabyte medical datasets for real-time diagnostics are accomplished in seconds, not minutes, dramatically accelerating workflows and enabling the low latency required for critical applications.
Types of SSD
Solid State Drives (SSDs) come in a few main flavors, primarily defined by their shape (form factor) and the connector they use. The three most common types you’ll see are:

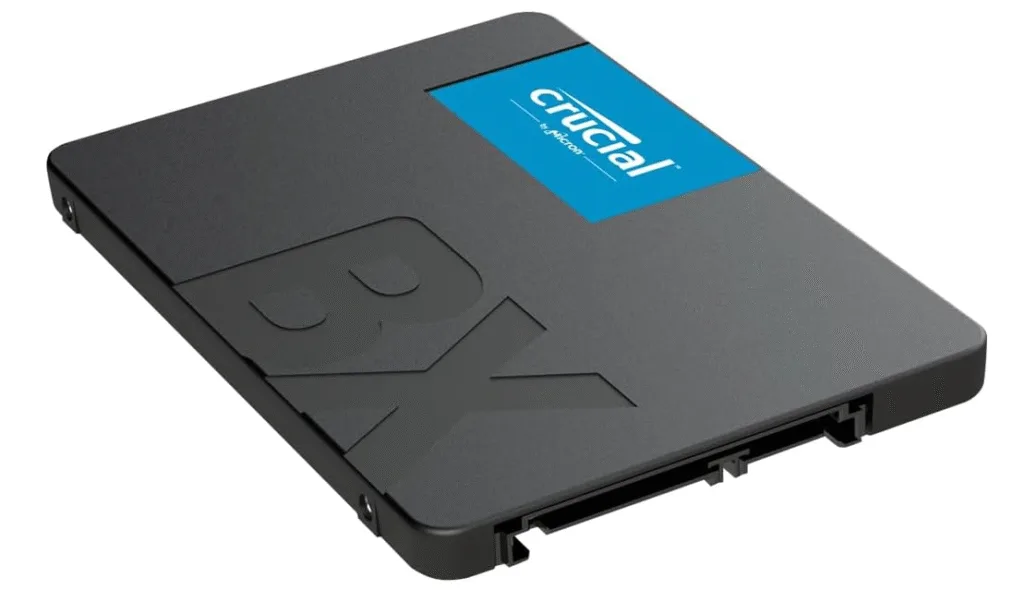

SATA SSDs (2.5-inch):
These look exactly like older laptop hard drives—rectangular and about 2.5 inches wide. They connect using the same SATA cable and port.
They are the slowest type of modern SSD, as they are limited by the speed of the older SATA connection, but they are a great, affordable upgrade for older desktops and laptops.

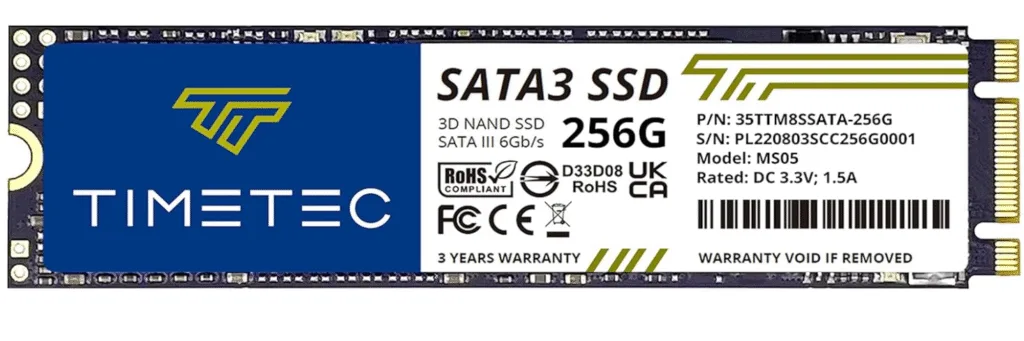

M.2 SSDs (SATA or NVMe):
These are tiny, thin sticks of chewing gum-sized storage that plug directly into a dedicated slot on the motherboard. M.2 is a form factor, but the stick itself can be either SATA (slow speed) or the much faster NVMe.

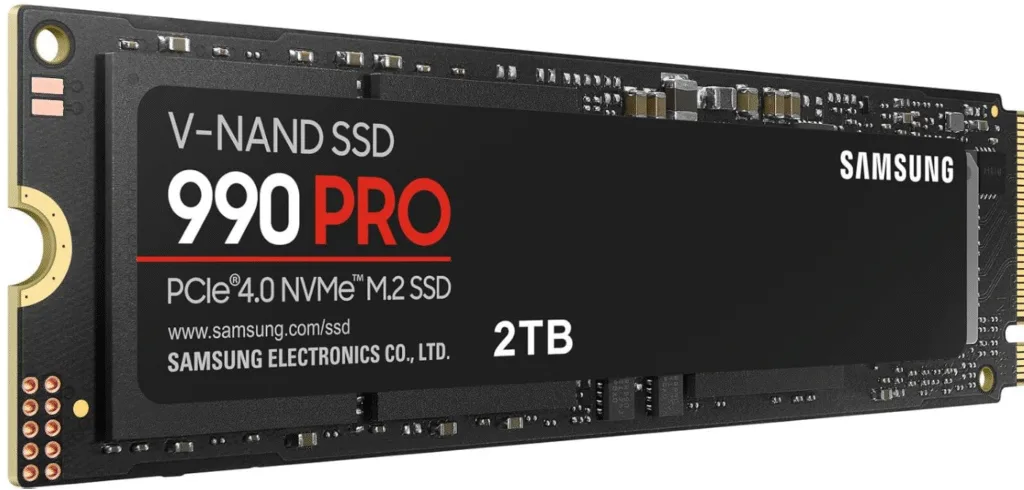

NVMe SSDs (PCIe/M.2):
This is the speed demon. NVMe (Non-Volatile Memory Express) is not a form factor but a protocol, or a communication method, that lets the SSD talk directly to the computer’s CPU using the PCIe bus.
This bypasses the slower SATA bottleneck entirely, resulting in phenomenal read and write speeds, which are essential for heavy tasks like video editing or gaming. These usually come in the M.2 stick form factor.
Are Desktop and Laptop SSDs Different?
The short answer is: Not really, not anymore.
The main difference between an SSD for a desktop and one for a laptop used to be the size. Laptops typically use the slimmer $2.5$-inch drives, while desktops often use the slightly larger $3.5$-inch HDDs, though they could still fit $2.5$-inch SSDs with an adapter.
However, modern computers have largely standardized on the tiny M.2 form factor.
- Laptops rely almost exclusively on M.2 NVMe SSDs because they are small, light, and sip power, which is perfect for battery life and thin designs.
- Desktops use M.2 NVMe SSDs for their primary, fastest storage and often use the older 2.5-inch SATA SSDs (or even large HDDs) for extra, slower storage where speed isn’t as critical.
So, while the physical size (form factor) might vary slightly based on the computer’s age or chassis, the underlying technology (SATA vs. NVMe) is available for both. A high-performance NVMe M.2 drive is the same whether you put it in a gaming laptop or a desktop workstation. The biggest consideration is just making sure the physical size and connector match the slot available in your specific machine.
How to identify whether my motherboard supports SSD or not ?
The easiest way to check compatibility is to simply look at the physical ports on your motherboard. If you want to use a standard 2.5-inch SATA SSD, your motherboard almost certainly supports it, as these use the same common SATA cables that hard drives use.

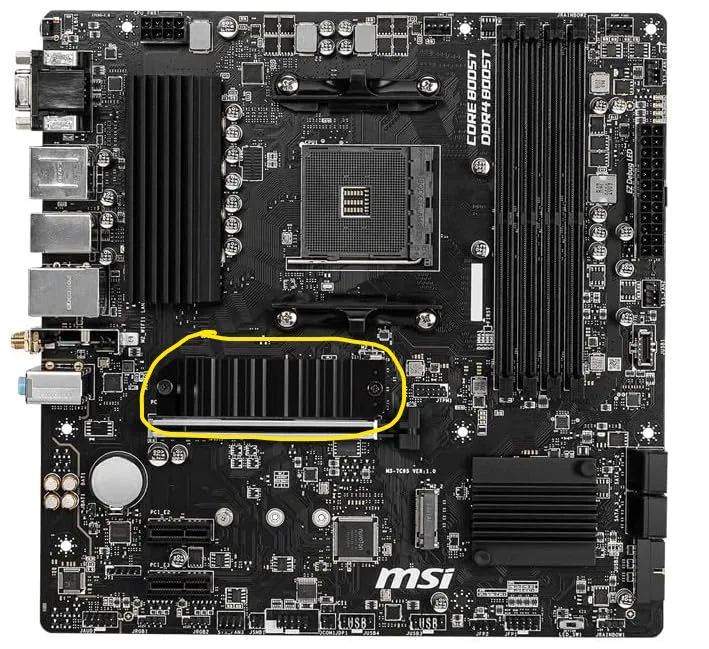

If you’re looking for the super-fast M.2 SSDs, you need to look for a specific, small, horizontal slot labeled “M.2” or “PCIe/NVMe” on your motherboard.
If you find the slot, you’re usually good to go, but you should also check your motherboard’s manual online to confirm two key things: first, that the M.2 slot supports the NVMe protocol (as opposed to being limited to the slower M.2 SATA protocol), and second, which physical size of M.2 stick (usually 2280 is standard) it accepts.
Here’s the step-by-step process you should follow to check for M.2 SSD compatibility:
- Find Your Motherboard Model:
- If you know your motherboard model (e.g., ASUS ROG Strix B650-A Gaming or Gigabyte B450 AORUS Elite), go directly to the manufacturer’s website (ASUS, MSI, Gigabyte, ASRock, etc.).
- If you don’t know the model, you can find it using the Windows System Information tool (search for “System Information” in your Start Menu) or by running a small software tool like CPU-Z or HWiNFO. Look for the “BaseBoard Product” or “System Model.”
- Check the Specifications Page:
- Once you’re on the product page for your specific motherboard, look for the “Specifications” or “Specs” tab.
- Under the specifications, look for a section titled “Storage,” “Expansion Slots,” or “M.2.”
- Verify the M.2 Details:
- The specifications will tell you the exact number of M.2 slots (if any).
- Crucially, they will tell you the interface it supports:
- PCIe (often Gen 3, Gen 4, or Gen 5): This supports the much faster NVMe SSDs.
- SATA: This supports SATA-protocol M.2 SSDs, which are slower but still faster than traditional hard drives.
- Some slots may be “dual-mode” and support both.
- It will also specify the supported physical size (e.g., 2280 is the most common, meaning 22mm wide and 80mm long).
How to check the compatibility of SSD?
The most effective way to check compatibility is by using SSD manufacturer compatibility tools. Websites run by brands like Crucial or Kingston often have “Upgrade Selectors” or “System Scanners” where you input your exact laptop model (like ‘Dell XPS 13 9300’) or your desktop motherboard model (like ‘ASUS ROG Strix B550-F’).
The site then cross-references that model with their database and tells you precisely which 2.5-inch SATA, M.2 SATA, or M.2 NVMe drives, including the correct physical size, are supported. This saves you the headache of looking through technical manuals yourself and is a much more secure way to buy.
SSD Specifications: What to Check Before You Buy
Choosing the right Solid State Drive (SSD) depends heavily on your specific needs (e.g., gaming, video editing, general use). Here are the key technical specifications you should evaluate.
1. Interface & Form Factor (Compatibility & Max Speed)
This dictates where and how fast the SSD can physically connect to your computer.
| Specification | Details | Maximum Speed (Approx.) |
|---|---|---|
| Interface | The communication protocol the SSD uses. | |
| NVMe (PCIe) | Non-Volatile Memory Express. Connects via the PCIe bus, offering significantly higher bandwidth and lower latency. This is the fastest option. | Up to 15,000 MB/s (PCIe 5.0) |
| SATA | Serial Advanced Technology Attachment. Connects via the older SATA bus and is limited by the protocol’s bandwidth. | ~600 MB/s |
| Form Factor | The physical shape and size of the drive. | |
| M.2 | A small stick-like format (most common is M.2 2280). M.2 drives can use either the fast NVMe protocol (PCIe) or the slower SATA protocol. Always check the protocol! | Varies (SATA or NVMe) |
| 2.5-inch | The same size as a traditional laptop HDD, connecting via a SATA cable. | ~600 MB/s (SATA) |
2. Performance (Speed Metrics)
Don’t just look at the big numbers; real-world speed depends on how data is handled.
| Specification | Details | Why it Matters |
|---|---|---|
| Sequential Read/Write Speed | The maximum speed when transferring large, contiguous files (e.g., copying a huge video file). This is the number most heavily advertised (in MB/s). | Good for content creation, large file transfers, and benchmarks. |
| Random Read/Write Speed (IOPS) | Measured in Input/Output Operations Per Second (IOPS). This is the speed at which the drive handles many small, scattered files simultaneously. | Most critical for daily use (OS boot time, launching applications, loading game assets). Higher IOPS means a snappier feel. |
| DRAM Cache | A small, ultra-fast memory chip on the SSD controller that stores the drive’s internal mapping table (FTL). | Drives with DRAM are generally faster and more consistent over long-term use, especially with heavy write tasks. DRAM-less drives rely on system RAM, which can be slower. |
3. Endurance & Longevity
This determines how long the drive is expected to last, especially under heavy use.
| Specification | Details | Implication |
|---|---|---|
| TBW (Terabytes Written) | The total amount of data (in terabytes) that the manufacturer guarantees can be written to the drive over its lifetime before wear-out becomes a concern. | The higher the TBW, the more durable the drive is. For average users, even a low TBW is sufficient, but content creators/heavy users need higher numbers (e.g., 600+ TBW for a 1TB drive). |
| NAND Type | The type of flash memory cell used, which affects density, cost, speed, and endurance. | |
| TLC (Triple-Level Cell) | Stores 3 bits per cell. The current standard for most consumer and gaming SSDs. Offers a good balance of cost, performance, and endurance. | Recommended for most users. |
| QLC (Quad-Level Cell) | Stores 4 bits per cell. Offers higher capacity at a lower cost, but has the lowest endurance and performance (especially when the high-speed cache runs out). | Best for read-intensive tasks like mass media/game storage where files are written infrequently. Avoid for primary OS or heavy write workloads. |
| MLC (Multi-Level Cell) | Stores 2 bits per cell. Rarely used in consumer drives now but offers higher endurance and better performance than TLC/QLC. | Used in high-end or enterprise drives. |
| Controller | The chip that manages all read/write operations and wear-leveling. (Often difficult to find, but check reviews). | High-quality controllers (like those from Samsung or Phison) are vital for sustained performance and reliability. |
SSD Slot Types and Connection Paths
When discussing modern, high-speed SSDs, particularly those using the NVMe protocol, the key differentiator is not just the physical slot, but which component on the motherboard controls the data path (the CPU or the Chipset).
The most common physical slot that supports this high-speed connection is the M.2 slot.
1. M.2 Slots Connected Directly to the CPU (The Fastest Path)
This connection provides the absolute lowest latency and highest potential speed for an SSD.
- Physical Slot: M.2 (Key M)
- Protocol: NVMe (Non-Volatile Memory Express)
- Connection Path: The M.2 slot is wired directly to the CPU’s available PCI Express (PCIe) lanes. Typically, the CPU reserves 4 dedicated PCIe lanes for the primary M.2 slot.
- Performance Characteristic:
- Lowest Latency: The data path is shortest, bypassing the chipset entirely.
- Highest Speed: The bandwidth is reserved purely for the SSD, often supporting the fastest speeds available (e.g., PCIe 5.0 x4 on the latest platforms).
- Identification: This is usually the first M.2 slot on the motherboard, often labeled
M2A_CPUor similar in the motherboard manual. Using this slot may sometimes affect other lanes (like the main PCIe slot for the GPU, depending on the CPU architecture).

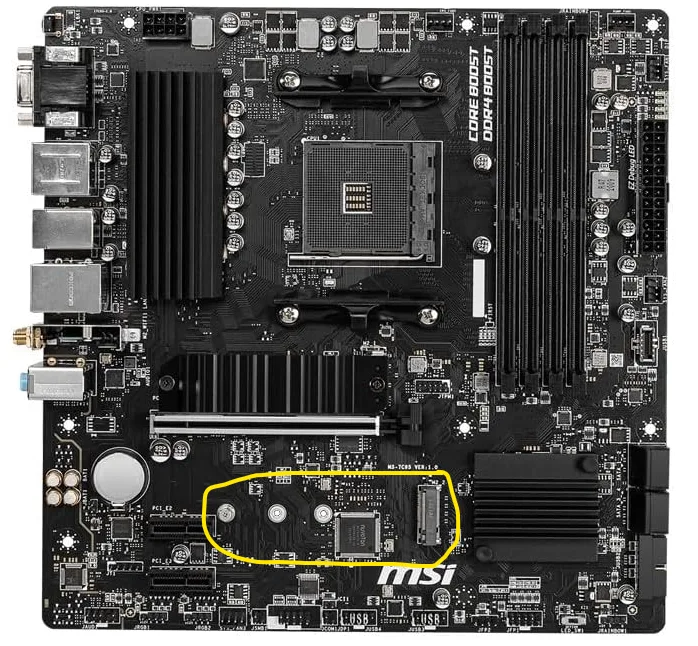

2. M.2 Slots Connected to the Chipset (The Motherboard Path)
These are M.2 slots connected indirectly to the CPU via the motherboard’s Platform Controller Hub (PCH), or Chipset (e.g., AMD B650/X670 or Intel B760/Z790).
- Physical Slot: M.2 (Key M)
- Protocol: NVMe (PCIe lanes routed through the Chipset)
- Connection Path: The M.2 slot connects to the Chipset, which then communicates with the CPU using a dedicated link (called the DMI on Intel platforms or the FCH link on AMD platforms).
- Performance Characteristic:
- Slightly Higher Latency: The data has to pass through the Chipset first before reaching the CPU.
- Shared Bandwidth: All devices connected to the chipset (like other M.2 slots, SATA ports, USB ports, and Wi-Fi/LAN controllers) share the limited bandwidth of the single link between the Chipset and the CPU.
- Identification: These are typically the secondary or tertiary M.2 slots on the motherboard. For 99% of general use and gaming, the speed difference is unnoticeable.
Why the CPU vs. Chipset Distinction Matters (If at all) in Laptops?
In a laptop, the distinction between CPU-direct and Chipset-routed NVMe slots is usually determined solely by the manufacturer:
- CPU-Direct Path: The primary M.2 slot in a high-performance or gaming laptop (which usually holds the boot drive) is often wired directly to the CPU to ensure the lowest latency and best possible speed.
- Chipset Path: Any secondary M.2 slots or the SATA ports are typically wired through the Chipset.
However, since laptop designs are tightly constrained, you generally don’t have control over this routing. If your laptop has multiple M.2 slots, the manufacturer’s manual will confirm which one is the fastest (i.e., the primary boot slot).
When upgrading, always prioritize an NVMe drive, as it offers speeds 5-25 times faster than any SATA-based drive.
HDD to SSD Performance Improvement: Quantifying the Difference
The shift from a mechanical Hard Disk Drive (HDD) to a Solid State Drive (SSD) is generally considered the most impactful performance upgrade in modern computing. This improvement is not linear; the percentage gain is immense in key areas, though smaller in others (like CPU calculations).
Here is a breakdown of the percentage improvement you will likely experience:
1. Sequential Read/Write Speed (Raw Data Transfer)
This is the technical benchmark that shows the largest percentage increase. It measures how fast large files (like movies or games) are written or read from the disk.
| From Drive Type | To Drive Type | Typical Speed (MB/s) | Percentage Improvement (Read Speed) |
|---|---|---|---|
| HDD (Starting Point) | — | 100 MB/s | 0% (Baseline) |
| HDD | SATA SSD (M.2 or 2.5″) | Up to 550 MB/s | ~450% Faster |
| HDD | NVMe SSD (M.2 PCIe 3.0) | Up to 3,500 MB/s | ~3,400% Faster |
| HDD | Modern NVMe (M.2 PCIe 4.0/5.0) | Up to 7,000+ MB/s | ~6,900% Faster |
This metric shows that an NVMe SSD is literally 50 to 70 times faster at sequential file transfers than an older HDD.
2. Boot and Shutdown Time (System Start-up)
This is the improvement the user notices first. Moving the Windows operating system onto an SSD dramatically reduces the time needed to load the necessary system files.
- HDD Boot Time: 45 seconds to over 2 minutes (depending on age).
- SSD Boot Time: 5 to 20 seconds.
Percentage Improvement: You can expect your system boot time to be 50% to 85% faster.
3. Application Load Time (Daily Responsiveness)
This is the key metric for overall system feel. Loading applications like web browsers, Microsoft Office, or a large photo editor requires reading thousands of tiny files quickly. HDDs struggle with this because their mechanical arm has to physically move (latency). SSDs have near-zero latency.
| Task | HDD Time | SSD Time | Percentage Improvement |
|---|---|---|---|
| Opening a large game or program | 15–30 seconds | 2–5 seconds | 67% to 90% Faster |
| Opening Microsoft Word/Excel | 5–10 seconds | 1–3 seconds | 70% to 80% Faster |
| Multitasking (swapping between apps) | Causes system slowdown | Near-instantaneous | Subjectively 100%+ Better |
4. Overall System Responsiveness (The Subjective Feel)
While we can’t measure this precisely, the perceived improvement in daily use is the most valuable part of the upgrade. The entire operating system will feel snappier, the mouse pointer won’t freeze when the disk is being heavily accessed, and switching between programs will be seamless.
The perceived overall performance increase is generally estimated to be between 100% and 300% in terms of responsiveness and usability.
Conclusion
I completely understand—diving into these hardware details can be tough when your focus is on diagnostic imaging! The good news is you now have the knowledge to decide if a super-fast NVMe SSD is the right performance boost for your current setup, or if you need to follow your excellent plan and consult that buyer’s guide for a new machine. Let me know if you’d like to discuss how much RAM or what kind of GPU usually pairs best with that SSD upgrade for specific radiology software!
